How much will one can of paint mark?
One can of paint will mark up to 75 cords or mark a distance of up to 5 miles. This will vary depending on the diameter of the log, distance between paint marks and at what speed you roll THE MINGO®.
How do I install the paint can?
a. Follow Manufacturer's Instructions On All Paint Cans
b. Shake paint for one minute after the ball rattles
c. Remove plastic cap from paint can with an appropriate tool
a. Turn the Mingo Upside Down and Insert Can
(making sure the nozzle goes through the hole in the trigger)
b. If the can is not fully inserted into the chamber, the trigger will NOT activate the spray paint
(If inserted correctly the bottom of spray paint can will be below rim of THE MINGO Marker canister by 3/8")
c. Turn THE MINGO® right side up and you ready to go.
d. Always remember to clear the nozzle of paint when not in use.
How do I operate THE MINGO®?
Loosen wing nut until wheel rotates easily.
Gently drag THE MINGO® backwards on log at least 18 inches or until wheel stops turning and stop when paint nozzle is directly over the edge of the log.
Next, simply roll THE MINGO® down the log keeping the paint can in a straight vertical position, yes it is that easy and fast.
When finished always clear nozzle of paint, this is very important. Always rotate wheel backwards manually until cam hits trigger and tighten wing nut to prevent accidental spraying.
What color paint should I purchase?
There are a variety of colors to choose from. We found that florescent paints have more of a tendency to plug prematurely, so we recommend reds, whites and blues as the best performers.
(When not in use, always remember to invert THE MINGO® and clear nozzle of paint by pushing the trigger sideways. )
What safety precautions should I implement?
Always follow label instructions on paint can. Keep out of reach of children.
Always rotate wheel backwards and tighten wing nut when not in use to minimize accidental spraying.
Always wear OSHA approved eye protection. Always wear gloves.
Never rotate wheel manually while nozzle is pointed at yourself or others.
How do I adjust for different length marking?
THE MINGO® comes packaged with a standard 16 inch marking wheel, let's say you need a 14 inch log to fit your fire box. You will need to purchase an optional wheel marked (14 inch wheel) on the box.
You would then remove the wing nut, bolt and 16 inch wheel, and install the 14 inch wheel in the holes marked 14 inches.
By changing the holes it maintains a proper nozzle to log distance and also keeps a correct cam to trigger position. Currently we offer 14, 16, 18, and the 6-12-24 inch wheel inch measuring and marking wheels.
No tools are required for this simple task.

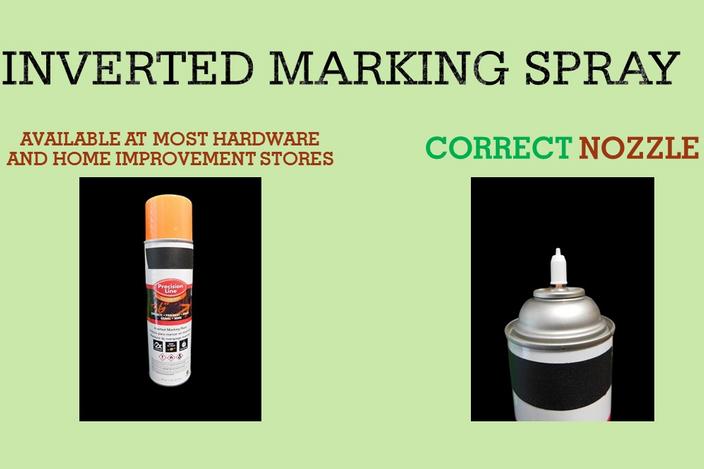

What kind of marking paint should I purchase?
The specific type of can requires sideways motion of the nozzle to cause spraying, however there are inverted marking paints on the market that require the nozzle to be depressed to spray, these will not operate in THE MINGO®.
In testing THE MINGO® we have not found that a specific brand worked better than another.
The paint is referred to as inverted contractors paint or surveyors paint.
This paint may be purchased at any local hardware store of your choice.
How do I take care of THE MINGO®?
THE MINGO® is chemical resistant not chemical proof, if gasoline or oil is spilled on THE MINGO® wipe off with a clean rag.
To clean the wheel of pitch and bark use a brass wire brush.
We all know UV rays are hard on plastic and bleach out any colors that are added so we recommend that you store it out of direct sun light.
Occasionally apply a small amount of grease on the wheel cam if necessary.
Always clear nozzle of paint when not being used.
No other maintenance is required.
When do you ship the product?
We make every attempt to ship the same day for orders received by 2pm (MST).
We use USPS shipping.
US Shipping Rates: $7.95
Canada $15.00 Flate Rate
